Multifunctional Three Roller Coating Equipment 5 - 20m/min

Ask Lasest Price
Brand Name :	Osmanuv
Model Number :	OSM-GT-1320-Ⅶ
Certification :	ISO9001 And CE
Price :	Negotiable
Payment Terms :	T/T,Western Union
Delivery Time :	35-45 Working days
Supply Ability :	According to customer's demand

Add to Cart

Product Details
Company Profile

Multifunctional Three Roller Coating Equipment 5 - 20m/min

Multifunctional Three Roller Coating Equipment 5-20m/min

Product Overview

Professional roller coating equipment designed for efficient surface treatment of various materials including wood, plastic, and metal. This multifunctional coating machine delivers smooth, uniform finishes with excellent coverage and no color difference.

Technical Specifications

1	Mechanical Size	2000mm × 3200mm wide × 1520mm high (Subject to actual size)
2	Effective Working Size	a. Effective width: 2000mm b. Thickness: 3-180mm c. Length (shortest): 500mm
3	Material	The shell is made of 1.5mm steel plate bending and welding, surface treated with liquid paint, and supporting wall made of 20cm steel plate (A3 material)
4	Coating Part	Four groups of roll coating system, each consisting of steel roller and silica gel wheel, with independent up/down lifting capability
5	Side Cots	Diameter: ￠150mm, length: 200mm. Made from Japanese high-quality polyurethane, wear-resistant with good elasticity. Hardness customizable (30-50 degrees). Features high-quality coupling transmission with KHV bearings and frequency converter speed control
6	Side Metering Wheel	Diameter: ￠100mm, length: 200mm. Made from 45# seamless steel tube with CO² welding, surface fine grinding, dynamic balance with runout less than 0.05mm. Hard chrome plating and polishing for bright finish
7	Conveyor Roller	Power: 1.5KW, diameter: ￠100mm, length: 1320mm. Made from 45# seamless steel tube with CO² welding, surface fine grinding, dynamic balance with runout less than 0.05mm. Hard chrome plating and polishing for bright finish. Direct plug-in connection drive
8	Transmission Mode	100mm transmission roller transmission, width: 1320mm. Long service life with smooth transmission
9	Transmission Speed	5-20m/min
10	Working Height	0-850mm (working face height from ground). Roller height equipped with position display
11	Control System	5 sets of hollow worm gear reducer and 5 sets of frequency converter. Each drum can be adjusted independently

Key Features

Suitable for side coating of wood, plastic, metal, and other materials
Produces smooth surface finishes with excellent fullness
No color difference in finished products
Independent control of each coating system
Precision engineering with high-quality components

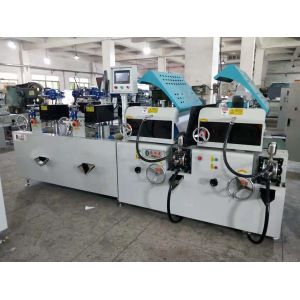

Multifunctional Three Roller Coating Equipment in operation

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?

A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?

A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?

A: One year warranty with lifelong maintenance and technical support.
